1.Product Taw qhia

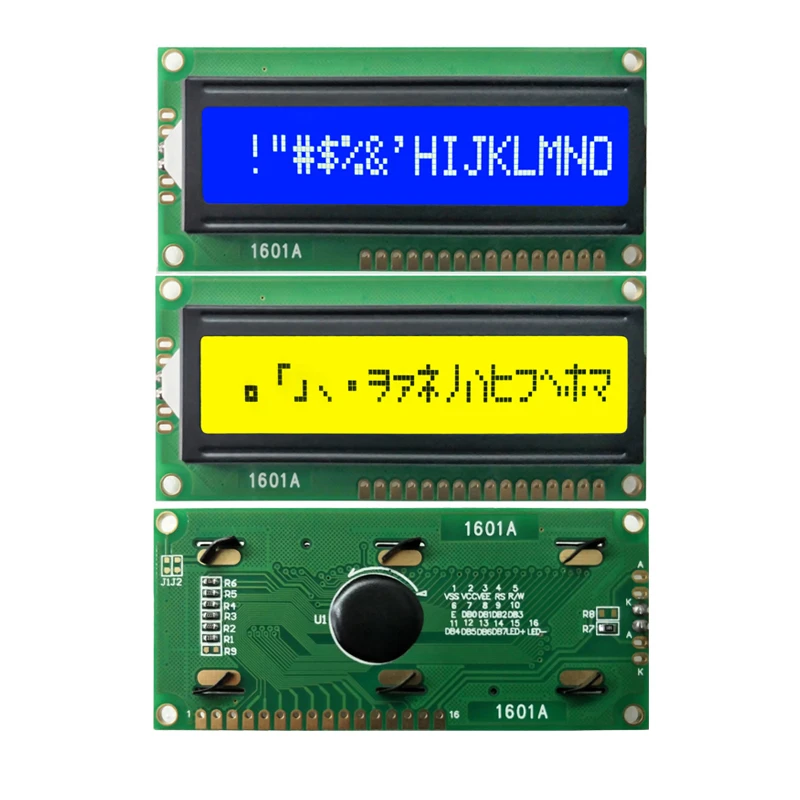

LCD Zaub 16x1 yog ib qho khoom siv me me LCD zaub, uas yog siv dav hauv ntau yam khoom siv hluav taws xob, xws li smart watches, theem teeb controllers, ntsia hlau tshuab, portable electronic devices, thiab lwm yam. }}kab qauv qauv, 1601 LCD module muaj kev sib koom ua ke siab thiab tsis muaj zog siv, thiab tsim nyog rau cov xwm txheej uas yuav tsum tau muab cov ntaub ntawv luv luv.
2.Khoom feature thiab daim ntawv thov
Miniaturization:Compact me me, haum rau kev teeb tsa hauv cov khoom siv nrog qhov chaw txwv.
Kev siv hluav taws xob tsawg: Siv cov thev naus laus zis LCD, kev siv hluav taws xob tsawg, roj teeb lub neej ntev.
Kev sib xyaw ua ke siab:Integrate zaub, tsav Circuit Court thiab tswj logic, simplifying tsim complexity.
1601LCM yog siv dav hauv ntau yam khoom siv me me, ntsuas, cov khoom siv hluav taws xob thiab cov khoom siv hauv nruab nrog, xws li cov ntsuas hluav taws xob, ntsuas kub, ntsuas ntshav ntsuas hluav taws xob, cov ntse ntse, thiab lwm yam.
Smart Wearable Devices:xws li smartwatches, khoom siv saib xyuas kev noj qab haus huv.
Portable Instruments:xws li portable ntsuas ntsuas, khoom siv hluav taws xob ua si.
Cov Khoom Siv Hluav Taws Xob:xws li cov nplais hluav taws xob, lub tshuab xam zauv me me, thiab lwm yam.
6.Product Parameter (specification)
|

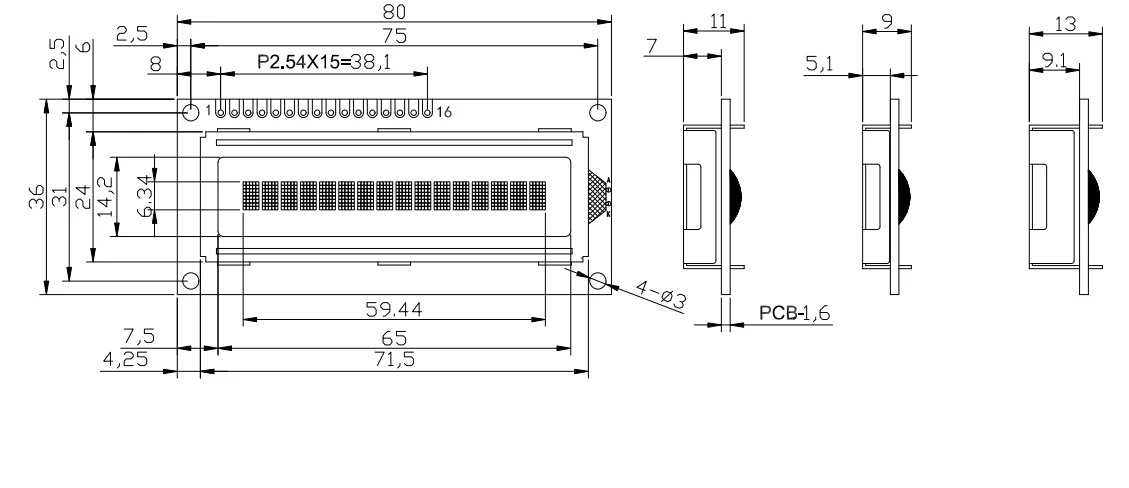

Module Loj: 80X36X (13/11/9)mm |
Zaub Saib Cheeb Tsam: 65X14.2mm |
|
LCD Hom: STN / POSITIVE / TRANSFLECTIVE |
View Angle: 6 teev tsaus ntuj |
|
Tsav IC: SPLC780D lossis sib npaug (AIP31066) |
Backlight Tsav hom: Fais fab / 3.1V / HITE |
|
DC rau DC Circuit Court: Tsim-In |
Luj: TBD |
|
PIN |
SYMBOL |
|
|
1 |
Vss |
|
|
2 |
Vdd |
|
|
3 |
Vo |
|
|
4 |
RS |
|
|
5 |
R/W |
|
|
6 |
E |
|
|
7 |
IB 0 |
|
|
8 |
DB 1 |
|
|
9 |
DB 2 |
|
|
10 |
DB 3 |
|
|
11 |
DB 4 |
|
|
12 |
DB 5 |
|
|
13 |
DB 6 |
|
|
14 |
DB 7 |
|
|
15 |
A |
|
|
16 |
K |
Kev Pabcuam Cov Neeg Siv Khoom
Tuam txhab Profile
Cheng Xin Optoelectronics LTD muaj 2 ntu code screen ntau lawm kab, 4 backlight ntau lawm kab, 5 FOG binding kab thiab 10 sib dhos ntau lawm kab. Lub tuam tsev Hoobkas hauv Shenzhen thiab Hunan muaj thaj tsam ntawm 10, 000 sqm thiab 500 tus neeg ua haujlwm. Lub tuam txhab lub tswv yim ua lag luam 'tsim tus nqi rau cov neeg siv khoom'.
