1.Product Introduction
Lub 2002 LCD npo yog ib hom kua siv lead ua kua zaub module, uas feem ntau yog siv los ua cov khoom siv hauv cov khoom siv hluav taws xob. Lub "2002" nyob rau hauv nws lub npe hais txog nws pixel daws teeb meem ntawm 20 kab × 2 kab. 2002A LCM feem ntau yog siv nyob rau hauv ntau yam khoom siv hluav taws xob thiab cov khoom siv, xws li hluav taws xob ntsuas ntshav siab, ntsuas kub, ntsuas hluav taws xob, thiab lwm yam, thiab yog nrov vim nws qhov yooj yim, kev ntseeg tau thiab tus nqi nruab nrab.
2.Khoom feature
Yooj Yim Tswj:feem ntau yog tswj los ntawm ib qho yooj yim serial lossis parallel interface.
2 kab thiab 20 kab ntawm cov cim, qhia meej thiab meej; 20 kab ntawm cov cim ib kab, muaj peev xwm nthuav tawm cov ntawv yooj yim thiab cov cim.
Siv cov cuab yeej siv LCD, cov nyhuv tso saib pom tseeb; yooj yim nyeem
Kev siv hluav taws xob tsawg, lub neej ntev; kev siv hluav taws xob tsawg, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig; siab stability;
Compact loj, haum rau siv nyob rau hauv tsawg qhov chaw.
Qhov loj me me, haum rau ntau yam khoom siv. Txwv cov ntsiab lus tso saib
Tsis haum rau complex graphics lossis animation zaub.
Txwv qhov sib txawv thiab saib lub kaum sab xis.
2002 LCD DISPLAYS feem ntau txuas nrog lub rooj tswj hwm lub ntsiab los ntawm tus tswj kom tau txais cov ntaub ntawv rau cov zaub. Cov neeg siv tuaj yeem tswj hwm cov ntsiab lus thiab cov qauv los ntawm kev ua haujlwm kom tau raws li qhov xav tau sib txawv.
Kev sib txuas hluav taws xob:txuas lub zog thiab tswj cov teeb liab.
Tswj Interface:xaiv serial lossis parallel interface raws li xav tau, thiab xa cov ntsiab lus los ntawm kev tswj cov cim.
Software Control:sau cov kev tswj xyuas los ntawm microcontrollers lossis ib-chip microcomputers los tswj cov ntsiab lus thiab hloov tshiab.
4.Product daim ntawv thov
Electronic Instruments:xws li hluav taws xob ntsuas ntshav siab, ntsuas kub, thiab lwm yam.
Consumer Electronics:xws li electronic watches, timers, thiab lwm yam.
Industrial Control:raws li ib tug tswj vaj huam sib luag zaub ntaus ntawv.
Embedded Systems:siv nyob rau hauv ntau yam embedded industrial tswj panels; vending tshuab; ntse vaj huam sib luag hauv tsev; khoom siv kho mob, thiab lwm yam.
Tsis txhob ncua qhov kub thiab txias ib puag ncig;
Tiv thaiv kom tsis txhob ya raws thiab siab;
Tsis txhob muaj kev vibration hnyav;
Txuas lub zog thiab cov ntaub ntawv cables kom raug.
6.Product Parameter (specification)
|

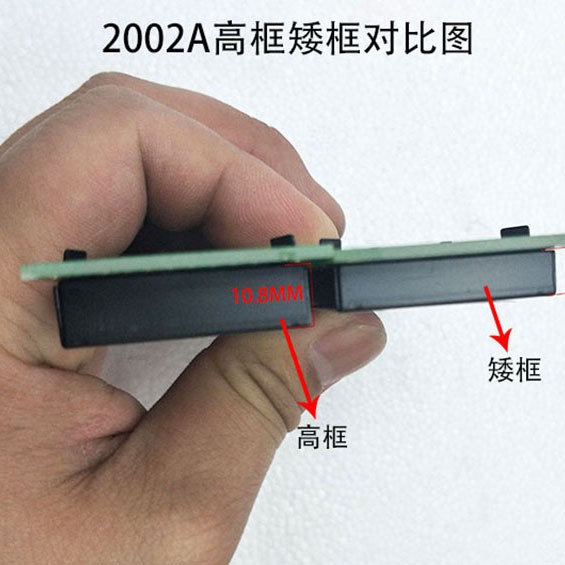

Module Loj: 116X36X 13.4/10.9) mm |
Zaub Saib Cheeb Tsam: 83X18.4mm |
|
LCD Hom: STN / POSITIVE / TRANSFLECTIVE |
View Angle: 6 teev tsaus ntuj |
|
Tsav IC: SPLC780D lossis sib npaug |
Backlight Tsav Hom: Fais fab / 3.3V / 5.0VHITE |
|
DC rau DC Circuit Court: Tsim-In |
Luj: TBD |
|
PIN |
SYMBOL |
|
|
1 |
Vss |
|
|
2 |
Vdd |
|
|
3 |
Vo |
|
|
4 |
RS |
|
|
5 |
R/W |
|
|
6 |
E |
|
|
7 |
IB 0 |
|
|
8 |
DB 1 |
|
|
9 |
DB 2 |
|
|
10 |
DB 3 |
|
|
11 |
DB 4 |
|
|
12 |
DB 5 |
|
|
13 |
DB 6 |
|
|
14 |
DB 7 |
|
|
15 |
A |
|
|
16 |
K |
