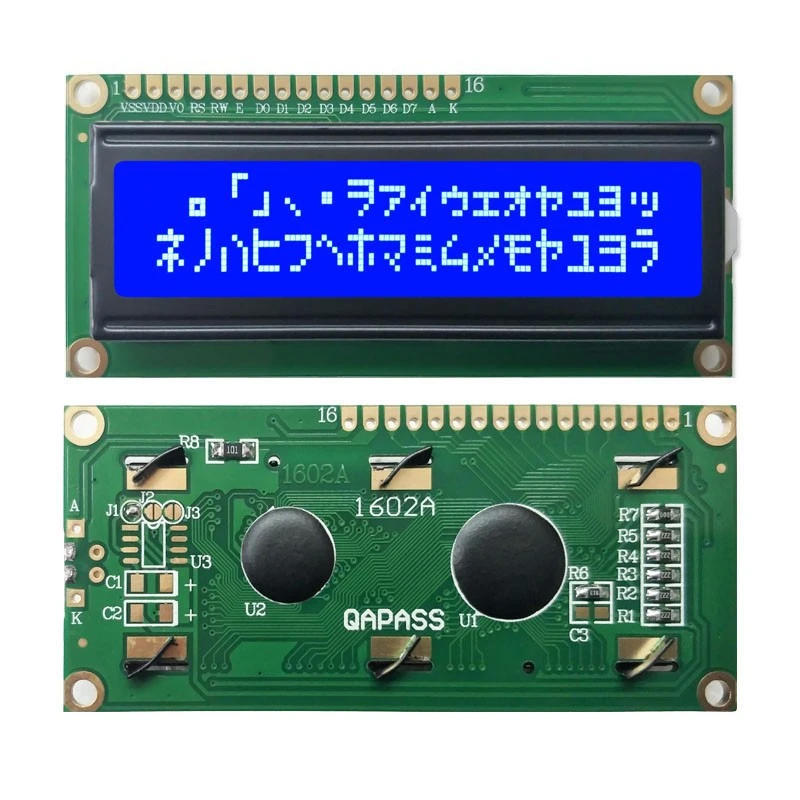

1.Product Introduction
1602 LCD yog ib qho ua cim LCD module, uas yog dav siv nyob rau hauv ntau yam khoom siv hluav taws xob thiab cov tshuab kos. Nws lub npe "1602" txhais tau hais tias cov zaub tuaj yeem tso 16 kab thiab 2 kab ntawm cov cim. 1602 LCD module yog dav siv nyob rau hauv ntau yam khoom siv hluav taws xob thiab embedded systems rau nws cov yam ntxwv yooj yim, tswv yim, ruaj khov thiab txhim khu kev qha.
2.Khoom feature
Kev siv hluav taws xob tsawg:1602Cob zaub screen txais cov kua siv lead ua kua siv thev naus laus zis, kev siv hluav taws xob tsawg, tsim nyog rau kev ua haujlwm ntev ntawm cov khoom siv hluav taws xob.
Cim Cim:haum rau kev nthuav tawm cov ntaub ntawv cov ntaub ntawv ruaj khov, xws li cov lej, cov tsiaj ntawv, cov cim, thiab lwm yam, nrog cov duab meej.
Yooj Yim Tswj:tswj siv tus qauv parallel lossis serial interface, yooj yim rau kev txuas nrog ntau yam microcontrollers thiab embedded systems.
Stable Thiab Reliable:Cov qauv yooj yim, ruaj khov thiab txhim khu kev qha, tsim nyog rau kev ua haujlwm ntev hauv kev lag luam ib puag ncig.
Tus nqi qis, siab nqi-zoo. Txawm li cas los xij, nws tsuas tuaj yeem tso saib tsawg tus cim thiab kab, tsis haum rau cov duab duab nyuaj.
1602LCM yog dav siv hauv cov nram qab no:
Cov Khoom Siv Hluav Taws Xob:xws li lub laij lej, lub moos hluav taws xob thiab lwm yam khoom siv hluav taws xob me me.
Industrial Control:siv rau cov xwm txheej tso saib thiab kev ua haujlwm interface ntawm ntau yam cuab yeej thiab khoom siv.
Embedded System:raws li cov ntaub ntawv tso saib module ntawm lub embedded txoj kev loj hlob platform, siv los tso saib system xwm txheej, debugging ntaub ntawv, thiab lwm yam.
4. Kev xav tau
Txhawm rau kom ntseeg tau tias kev ua haujlwm ib txwm muaj thiab pom cov txiaj ntsig zoo ntawm 1602 LCD npo, koj yuav tsum tau ua tib zoo saib xyuas cov cai hauv qab no:
Lub zog hluav taws xob:Nyob ntawm tus qauv tshwj xeeb, nws feem ntau yog 3.3V lossis 5V, thiab nws yuav tsum tau ua kom ntseeg tau kom haum rau qib tswj.
Tswj Interface:Paub meej tias tus tswj interface siv, xws li kev sib txuas sib txuas (feem ntau yuav tsum muaj ntau tus pins tswj) lossis serial interface (txuag tswj pins tab sis qeeb qeeb).
Ib puag ncig tej yam kev mob:Tsis txhob cuam tshuam rau lub sijhawm ntev ntawm qhov kub thiab txias, cov av noo siab, thiab plua plav ib puag ncig kom tsis txhob cuam tshuam rau LCD cov nyhuv thiab lub neej.

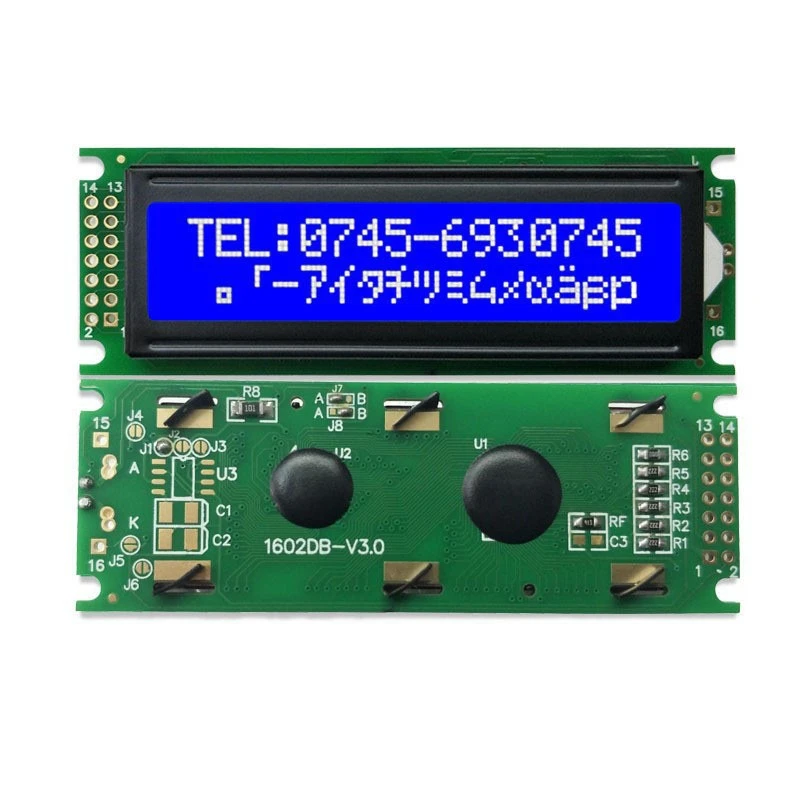

5.Product Parameter (specification)
|

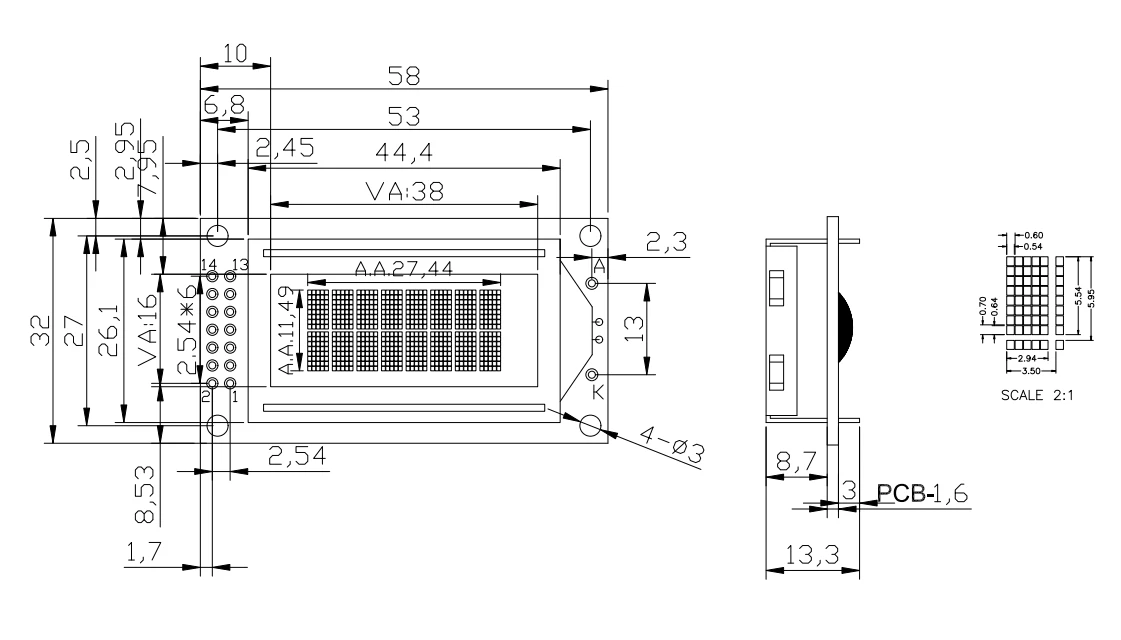

Module Loj: 58.5X32.5X13.3mm |
Zaub Saib Cheeb Tsam: 38X16mm |
|
LCD Hom: STN / POSITIVE / TRANSFLECTIVE |
View Angle: 6 teev tsaus ntuj |
|
Tsav IC: ST7920 lossis sib npaug |
Backlight Tsav Hom: Fais fab / 3.1V / HITE |
|
DC rau DC Circuit Court: Tsim-In |
Luj: TBD |
|
PIN |
SYMBOL |
|
|
1 |
Vss |
|
|
2 |
Vdd |
|
|
3 |
Vo |
|
|
4 |
RS |
|
|
5 |
R/W |
|
|
6 |
E |
|
|
7 |
IB 0 |
|
|
8 |
DB 1 |
|
|
9 |
DB 2 |
|
|
10 |
DB 3 |
|
|
11 |
DB 4 |
|
|
12 |
DB 5 |
|
|
13 |
DB 6 |
|
|
14 |
DB 7 |
|
|
15 |
A |
|
|
16 |
K |
