Khoom Taw Qhia

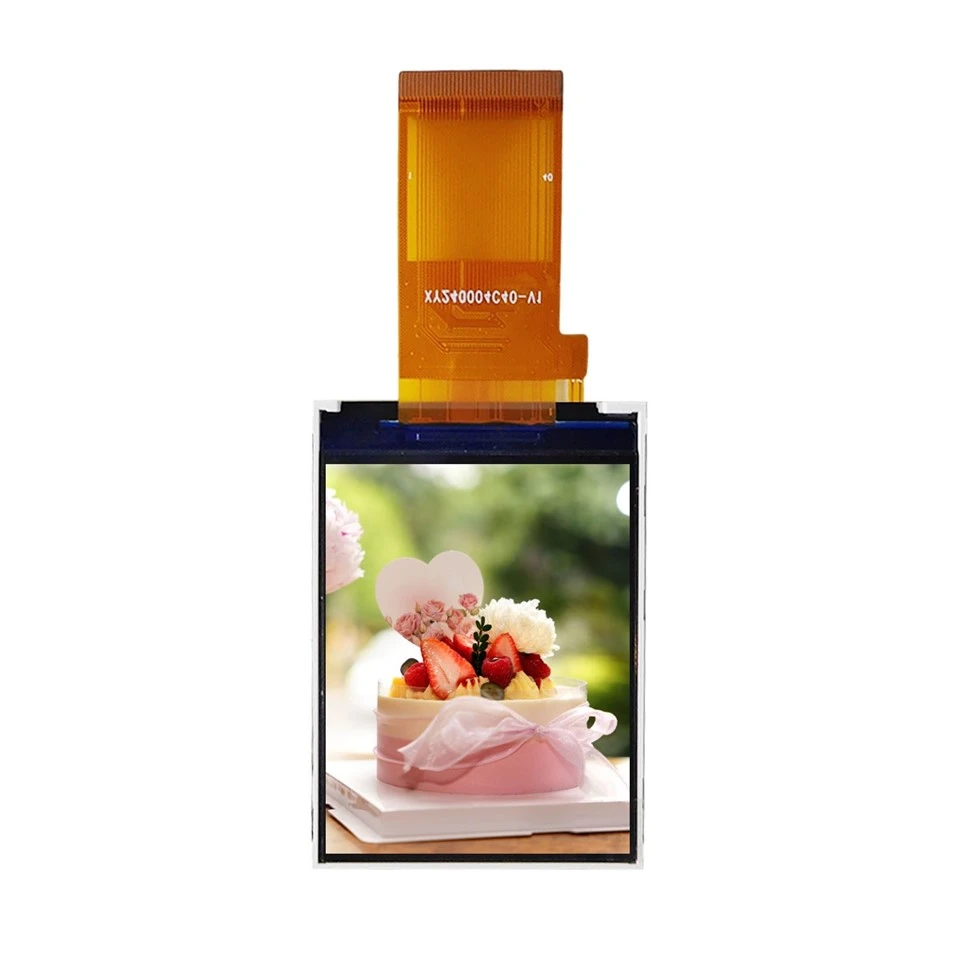

2.4 nti tft zaub
Feem ntau 2.4-nti TFT LCD cov ntxaij vab tshaus yog sib xws nrog microcontrollers thiab kev loj hlob boards . 2.4 nti tft zaub kuj muab cov kaum sab xis pom dav dua li ib txwm STN thiab TN cov ntxaij vab tshaus, kom ntseeg tau qhov kev pom zoo tshaj plaws los ntawm ntau lub kaum ntse ntse.
2.4 nti lcd tft zaub arduino
Piv nrog rau cov duab loj dua, 2.4-nti TFT cov lus muaj nqis dua thiab tsim nyog rau feem ntau DIY tej yaam num thiab cov khoom lag luam me. TFT zaub thev naus laus zis muab cov lus teb nrawm thiab nrawm nrawm.
2.4 TSi 240x320 arduino
2.4 TFT SPI 240x320 Arduino: Lub 320x240 daws teeb meem muab cov ncauj lus kom ntxaws txaus, feem ntau yog siv rau kev nthuav tawm cov ntawv nyeem, duab, thiab duab.
Vim yog TFT thev naus laus zis, cov zaub tau pom meej dua, muaj yeeb yuj ntau dua, thiab muaj kev nthuav dav ntau dua li cov LCDs.
2004A zaubParameter (kev qhia)
|
Module Loj: 42.72 (W) × 60.26 (H) × 2.3 (T) |
Zaub Saib Thaj Tsam: 37.72(W) x49.96(H) |
|
LCD Hom: STN / POSITIVE / TRANSFLECTIVE |
View Angle: 6 teev tsaus ntuj |
|
Tsav IC: ST7789P3 |
Backlight Tsav Hom: Fais fab / 3.3V / 5.0VHITE |
|
Pixel suab (W * H): 0.153 * 0.153 |
Luj: TBD |
|
PIN |
SYMBOL |
 |
|
1 |
VDD |
|
|
2 |
IOVCC (1.8 / 2.8V) |
|
|
3 |
GND |
|
|
4 |
TE |
|
|
5 |
/CS |
|
|
6 |
/RSTB |
|
|
7 |
RS |
|
|
8 |
WRB |
|
|
9 |
RDB |
|
|
10 |
DB7-IB 0 |
zaub lcd tft 2.4 Cov khoom zoo sib xws
FAQ
