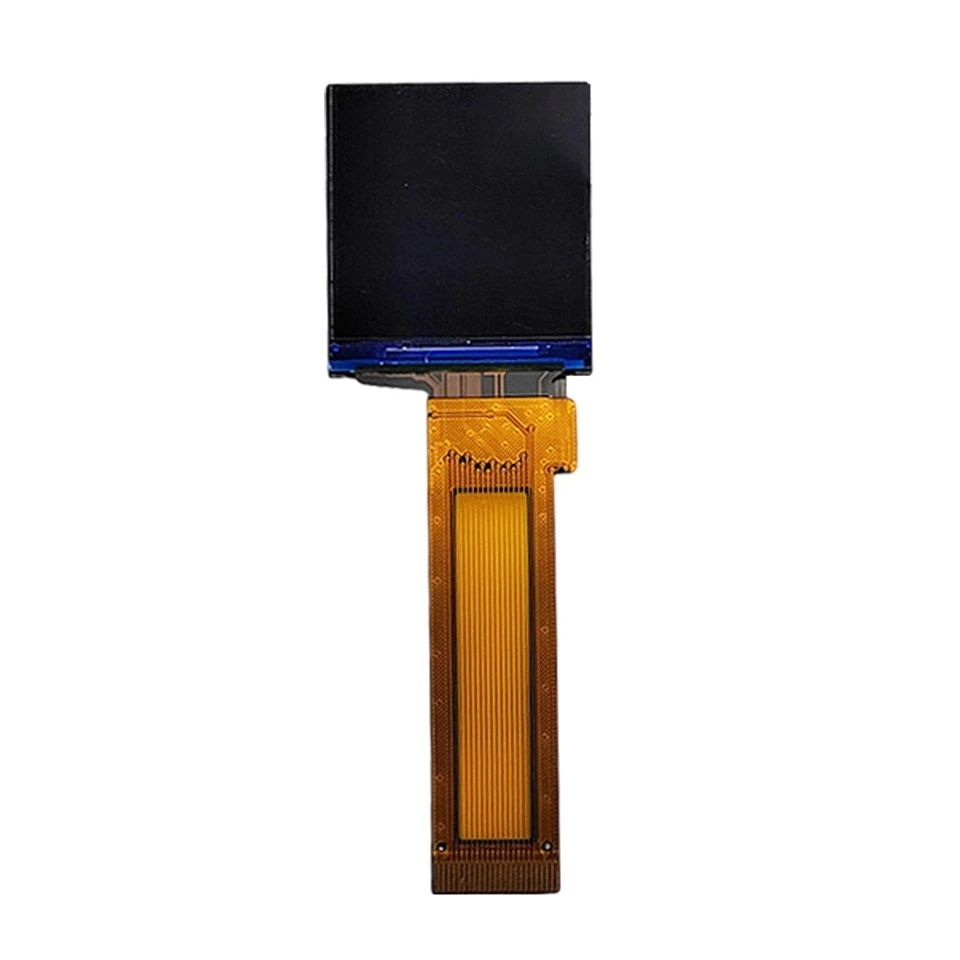

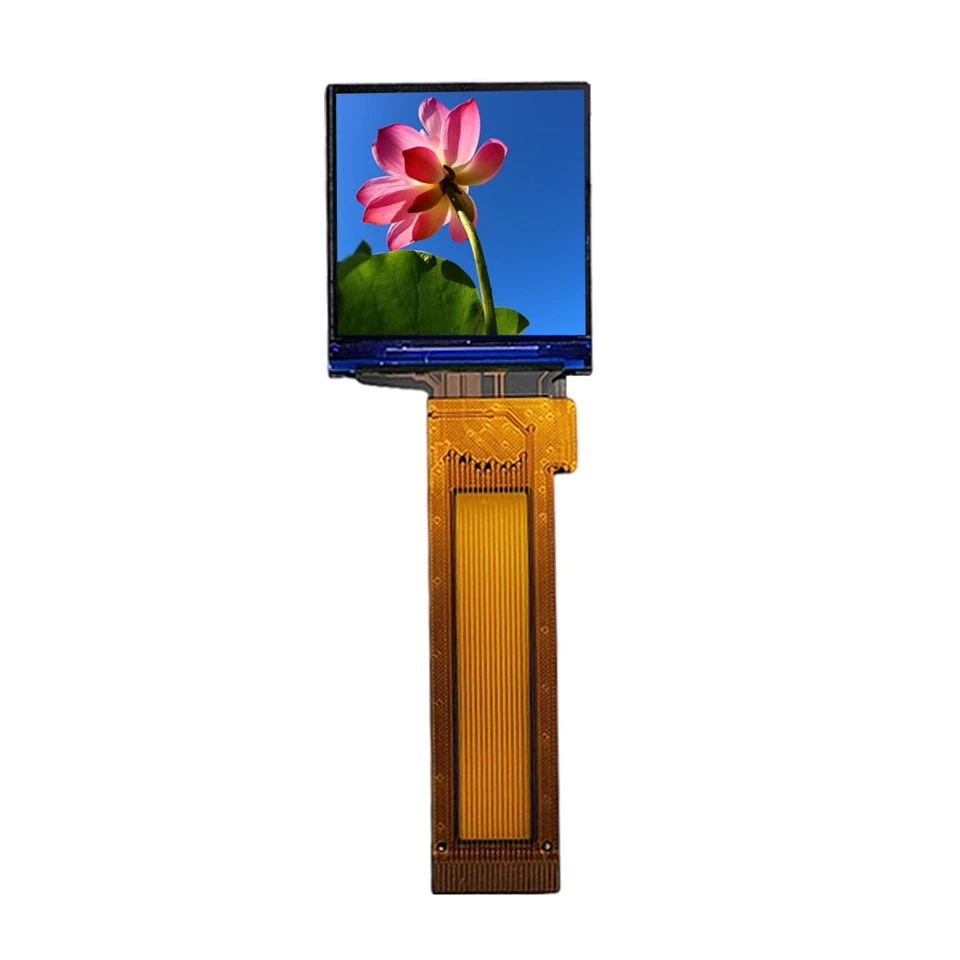

1.3 tft npo
1.3 nti TFT zaub yog xim me me xim LCD npo nrog kab pheeb ces kaum ntev li ntawm 33 hli. Nws zoo ib yam li 0.96 TFT LCD thiab yog micro LCD npo.
txf 1.3
yog ib qho xim LCD me me nrog kab pheeb ces kaum ntev li ntawm 33mm. Nws, zoo li 0.96 TFT LCD, yog cais raws li micro LCD.

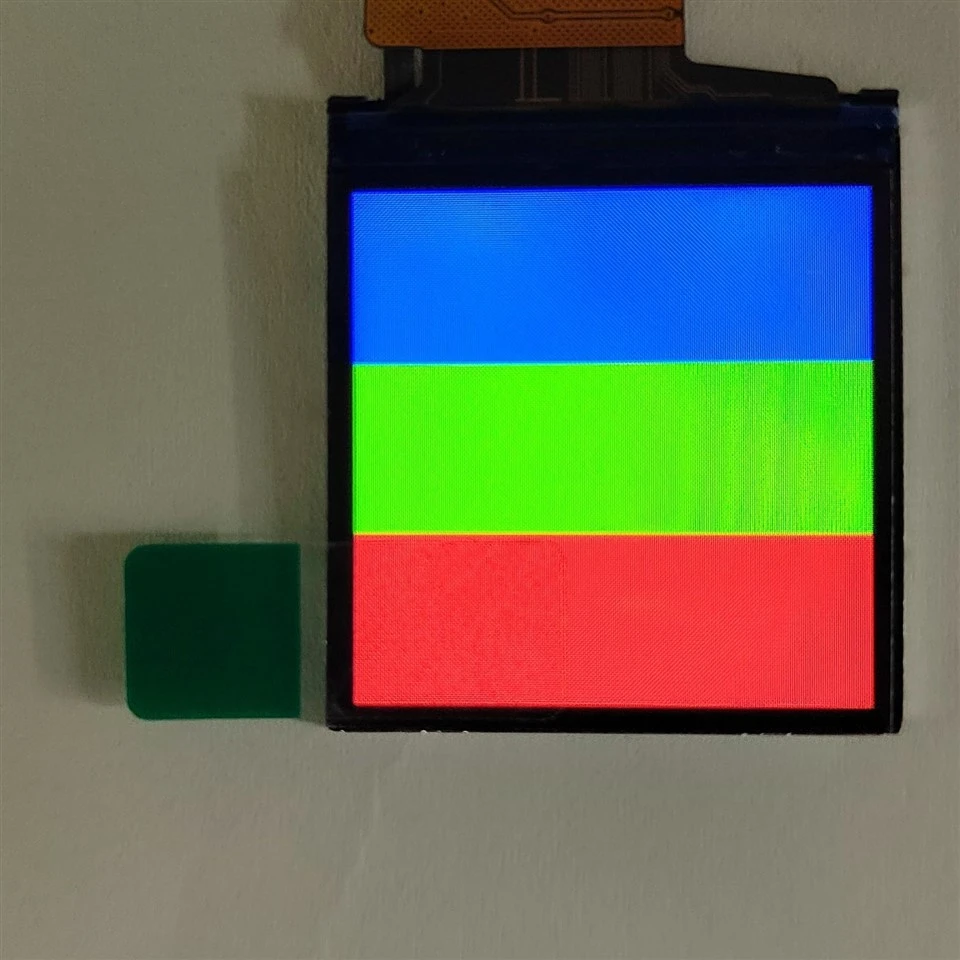

Lub 1.3-inch TFT zaub siv TFT (thin-film transistor) thev naus laus zis rau xim zaub, muaj peev xwm hloov cov duab. Cov pixel ntau thiab tsawg yog 240 × 240 thiab 240 × 320. Peb 1.3-nti TFT zaub muaj 240 × 240 pixel daws teeb meem, ua rau nws ze li ntawm lub vijtsam square. Nws tuaj yeem siv rau hauv kev tsim cov khoom lag luam uas xav tau ib cheeb tsam square.
1.3 nti tft zaub
feem ntau muaj ib qho ua tau - nyob rau hauv LED backlight, tso cai rau adjustable brightness. Piv nrog rau lwm cov LCDs, TFT cov lus qhia muab lub sij hawm teb sai dua thiab pom meej dua.

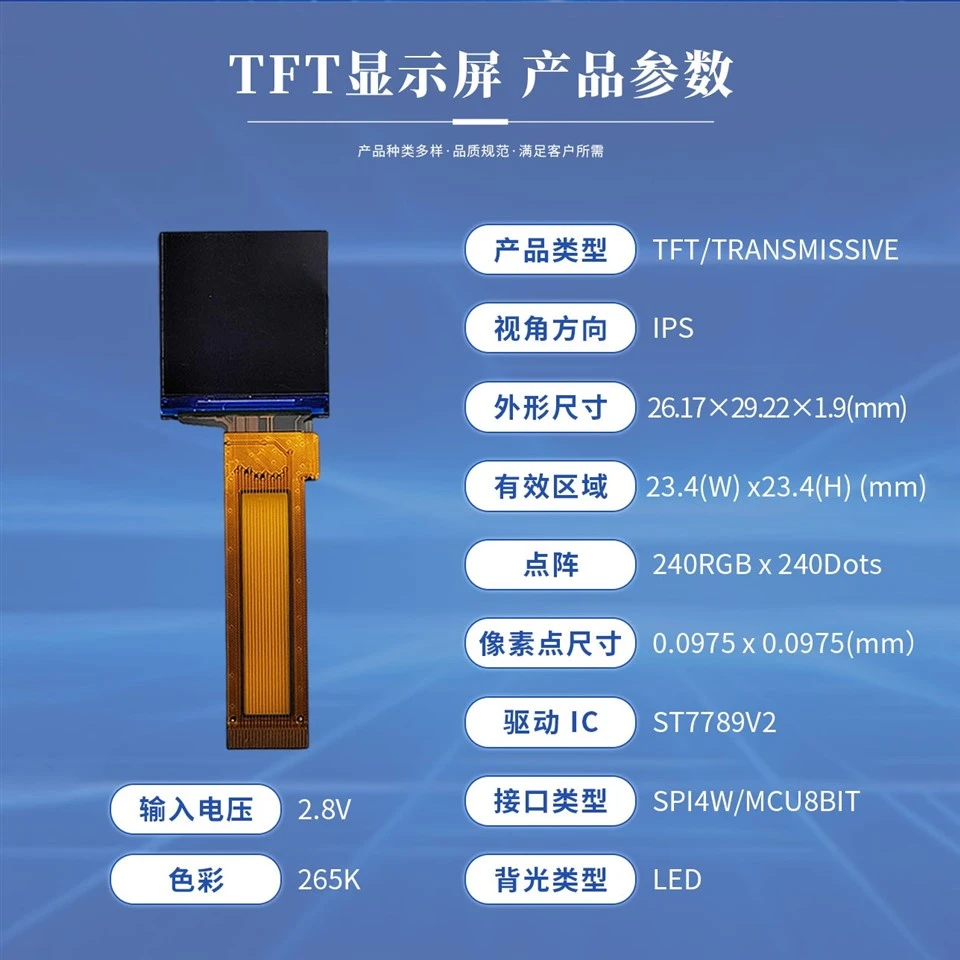

130003C24 tft LCD npotso saibParameter (kev qhia)
|

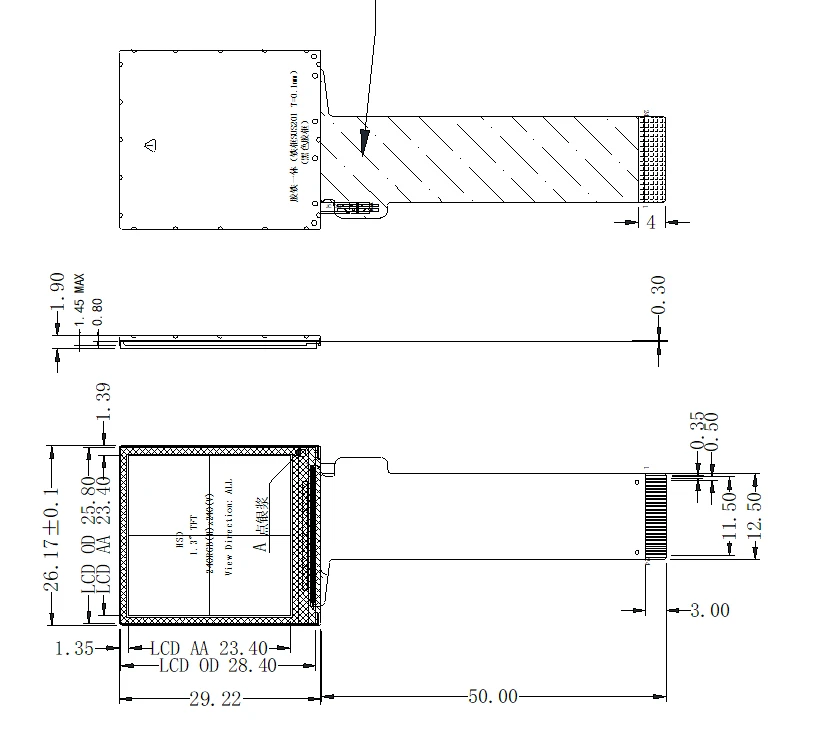

Module Loj: 26.17 (W) × 29.22 (H) × 1.9 (T) |
Zaub Saib Thaj Chaw: 23.4(W) x23.4(H) |
|
Number of Dots: 240RGB x 240Dots |
Pixel suab (W * H): 0.0975H) x 0.0975 (V) |
|
Tsav IC: ST7789V2 |
Input voltage: 2.8V |
|
DC rau DC Circuit Court: SPI4W / MCU8BIT |
Luj: TBD |
|
PIN |
SYMBOL |
 |
|
1 |
A |
|
|
2 |
K |
|
|
3 |
GND |
|
|
4 |
VCC |
|
|
5 |
IOVCC |
|
|
6 |
IM 12 |
|
|
7 |
CS |
|
|
8 |
RS |
|
|
9 |
WR |
|
|
10 |
RD |
|
|
11 |
SDA |
|
|
12-20 |
IB 0-7 |
|
|
21 |
TE |
|
|
22 |
NC |
|
|
23 |
GND |
|
|
24 |
GND |
