128x32 Monochrome LCD zaub

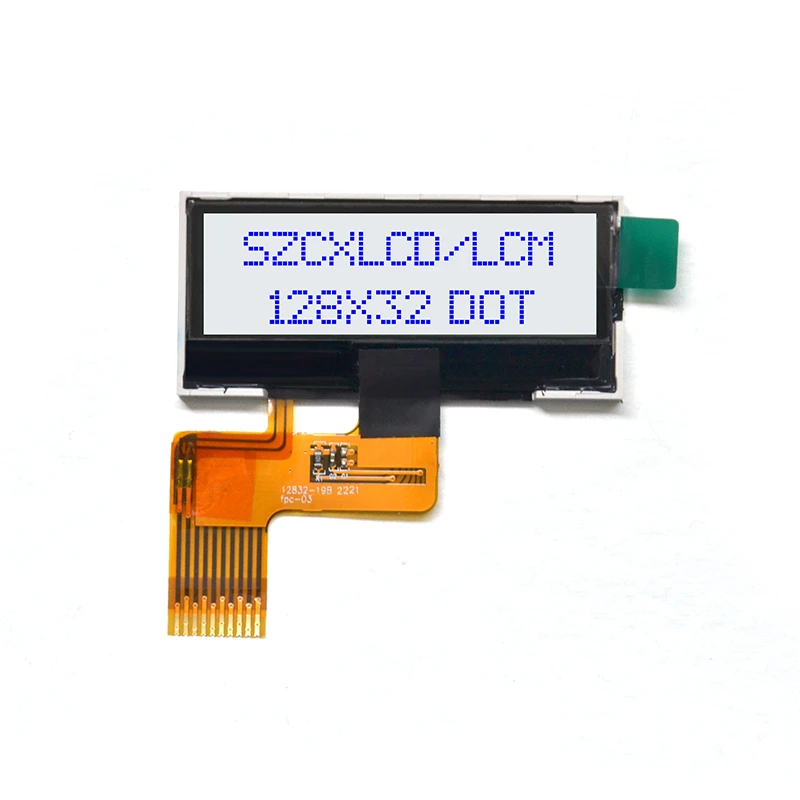

A: Ib qho 128x32 Monochrome LCD yog hom Liquid Crystal Display (LCD) uas muaj 128 kab thiab 32 kab pixels. Txhua pixel tuaj yeem tso tawm tsuas yog ib qho xim, feem ntau yog xim dub, ntawm lub ntsej muag dawb lossis lub teeb tom qab, ua rau nws muaj xim monochrome. Nws yog dav siv nyob rau hauv cov ntawv thov uas yuav tsum tau siv hluav taws xob tsawg, xws li cov khoom siv hluav taws xob me me, cov cuab yeej siv tes tuav, thiab cov tshuab embedded.

A: Cov txiaj ntsig tseem ceeb ntawm 128x32 Monochrome LCD suav nrog kev siv hluav taws xob tsawg, kev nyeem ntawv siab hauv ntau yam teeb pom kev zoo, thiab qhov loj me. Cov lus qhia no pheej yig piv rau cov ntxaij vab tshaus xim thiab zoo tagnrho rau cov ntawv nyeem yooj yim lossis cov duab kos duab. Lawv kuj muab kev ua tau zoo hauv kev siv sab nraum zoov uas lub zog ua haujlwm yog qhov tseem ceeb thiab cov xim xim tsis tsim nyog.

A: Feem ntau siv rau 128x32 Monochrome LCD suav nrog kev nthuav qhia cov ntaub ntawv yooj yim hauv cov khoom siv xws li cov moos digital, ntsuas kub, cov khoom siv tes ua si, thiab cov khoom siv dag zog. Nws kuj tseem siv tau rau hauv cov tshuab embedded, automotive dashboards, cov khoom siv hauv tsev, thiab cov khoom siv hauv tsev. Cov zaub yog qhov zoo tagnrho rau cov ntawv thov uas tsuas yog xav tau cov ntawv nyeem, cov duab yooj yim, lossis cov ntaub ntawv tus lej.

A: Ib qho 128x32 Monochrome LCD ua haujlwm los ntawm kev tswj cov kev taw qhia ntawm cov kua siv lead ua kua molecules los thaiv los yog cia lub teeb hla. Cov zaub matrix muaj 128 kab thiab 32 kab ntawm pixels. Cov teeb liab hluav taws xob tswj kev sib raug zoo ntawm cov muaju, uas nyob rau hauv lem modulate lub teeb los tsim cov ntawv pom thiab cov duab. Cov kua siv lead ua kua tsis tawm lub teeb; lawv tsuas yog siv lub teeb uas hla dhau ntawm lawv.

A: Cov yam ntxwv tseem ceeb ntawm 128x32 Monochrome LCD suav nrog kev daws teeb meem ntawm 128x32 pixels, monochrome zaub (feem ntau yog xim dub rau dawb), siv hluav taws xob tsawg, thiab tus nqi qis. Cov lus qhia no feem ntau yog tsav los ntawm tus maub los yooj yim xws li SSD1306 lossis SH1106 nrov. Lawv feem ntau txhawb nqa I2C lossis SPI interfaces, ua rau lawv yooj yim rau kev koom ua ke nrog microcontrollers thiab cov rooj sib tham me me xws li Arduino thiab Raspberry Pi.

A: Lub zog noj ntawm 128x32 Monochrome LCD feem ntau yog qis, feem ntau nyob rau hauv thaj tsam ntawm 10-50mA nyob ntawm qhov ci ci thiab kev siv. Qhov no ua rau cov zaub zoo tagnrho rau cov khoom siv roj teeb. Txij li nws yog monochrome, nws tsis tas yuav muaj zog ntau npaum li cov xim xim, uas ua rau nws haum rau kev siv mus sij hawm ntev hauv cov khoom siv hluav taws xob, sensors, thiab IoT.

A: Yog lawm, koj tuaj yeem tso cov duab ntawm 128x32 Monochrome LCD, txawm hais tias qhov kev daws teeb meem txwv qhov nthuav dav. Cov duab yog feem ntau tso tawm xim dub thiab dawb, txhais tau tias cov xim sawv cev tsuas yog siv ob qhov ntxoov ntxoo. Txhawm rau tso cov duab, cov duab yuav tsum xub hloov mus rau hauv ib hom bitmap nrog kev daws teeb meem ntawm 128x32 pixels. Txhawm rau kom tau txais txiaj ntsig zoo dua, cov duab yooj yim dua lossis cov logos nyiam dua vim qhov pom me me.

A: Txhawm rau cuam tshuam 128x32 Monochrome LCD nrog lub microcontroller, koj feem ntau siv I2C lossis SPI kev sib txuas lus raws tu qauv. Cov zaub txuas nrog lub microcontroller cov ntaub ntawv thiab cov kab moos, thiab koj siv lub tsev qiv ntawv sib xws los xa cov ntaub ntawv thiab cov lus txib rau cov zaub. Cov tsev qiv ntawv nrov xws li Adafruit lub tsev qiv ntawv SSD1306 (rau I2C) lossis U8g2 (rau I2C thiab SPI) tuaj yeem siv los tswj lub LCD yooj yim.

A: Qhov kev txwv tseem ceeb ntawm 128x32 Monochrome LCD yog nws qhov kev daws teeb meem qis, uas txwv tsis pub cov ntaub ntawv tuaj yeem tso tawm. Nws yog tsim rau cov ntawv nyeem, cov duab yooj yim, thiab cov lej, tab sis tsis yog rau cov duab nyuaj lossis cov duab ntxaws ntxaws. Tsis tas li ntawd, vim nws yog monochrome, nws tsis tuaj yeem tso saib cov duab xim, ua rau nws tsis haum rau cov ntawv thov uas xav tau cov duab zoo nkauj lossis cov duab nplua nuj.

A: Ib qho 128x32 Monochrome LCD yog qhov ruaj khov, tab sis nws lub neej ntev tuaj yeem nyob ntawm tus qauv tshwj xeeb thiab ib puag ncig. Feem ntau cov LCDs muaj lub neej ntev li ob peb txhiab teev, tab sis raug rau qhov kub thiab txias, av noo, lossis kev ntxhov siab ntawm lub cev tuaj yeem txo lawv txoj sia. Lawv feem ntau tiv taus kev poob siab thiab kev co, ua rau lawv tsim nyog siv rau hauv kev lag luam, tsheb, thiab sab nraum zoov ib puag ncig. Txawm li cas los xij, lawv tseem muaj kev cuam tshuam rau kev puas tsuaj zoo li qub thiab dhau-voltage tej yam kev mob.
